Allwinner H313 Android 10.0 OS box

Hardware Feature

Ø CPU : Amlogic S905Y5 Quad Core ARM Cortex A55
Ø GPU : G31 MP2 OpenGL ES3.2
Ø Memory : 2GB DDR4 (Option: 2GB DDR3)
Ø Flash : 16GB eMMC (Option: 32GB )
Ø WiFi : IEEE 802.11 ax

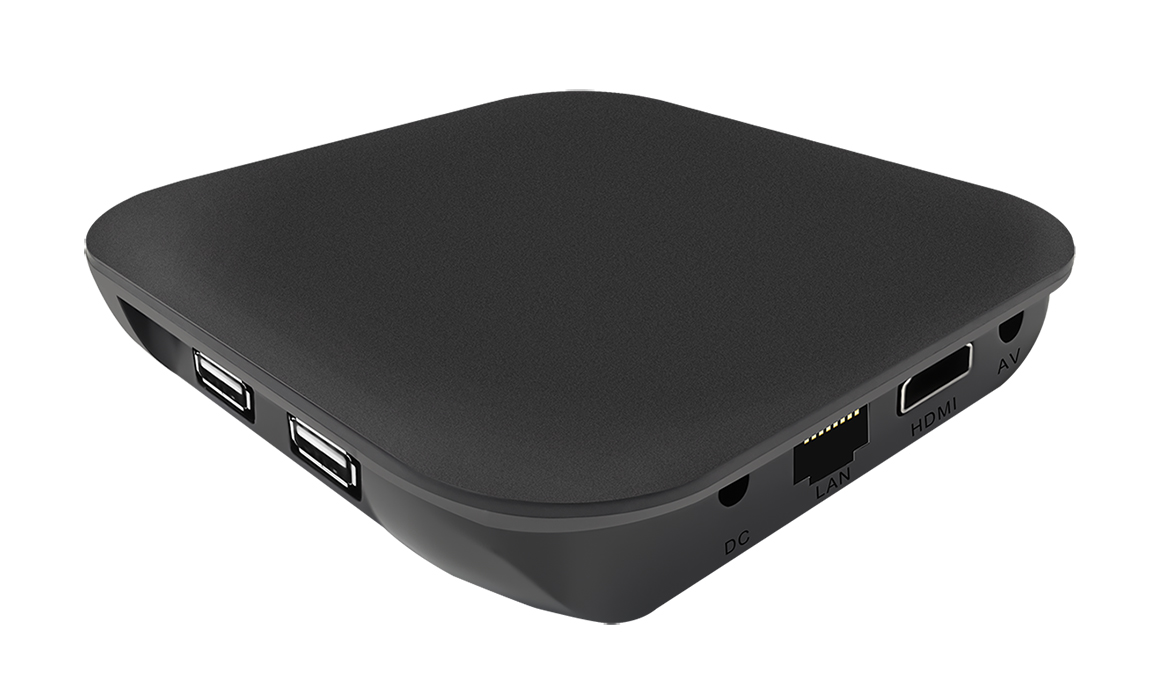

Ø Interface :
• 1xHDMI : 4Kx2K@60fps UHD Output, HDMI 2.1b, Dynamic HDR and HDCP 2.2/2.3
• 1xAV OUT : 480i/576i Standard Definition Output
• 2xUSB : 1xUSB Host Port , 1xUSB Device
• 1xIR Receiver : Remote Receiver Connect
• 1xRJ45 : Ethernet Interface
Ø Power : DC 5V/2A
Ø Power : DC 5V/2A
Ø LED indicator : Working Mode (Blue) ; Standby Mode (Red)

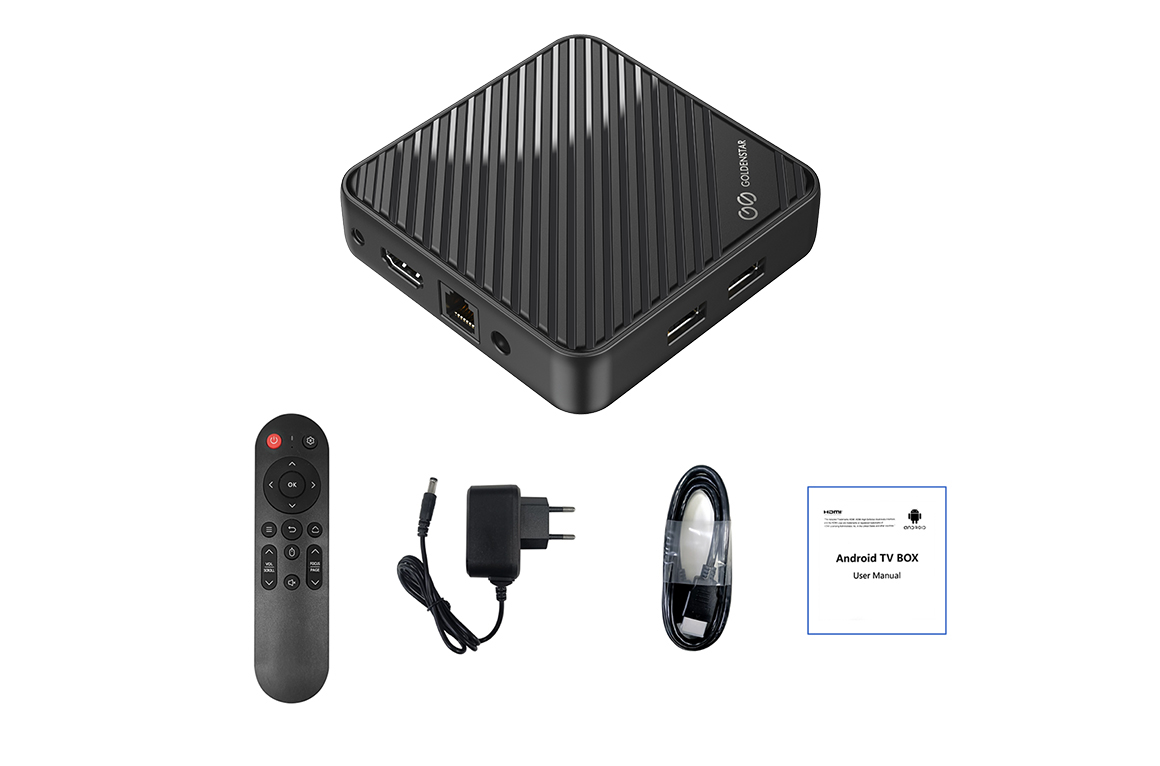

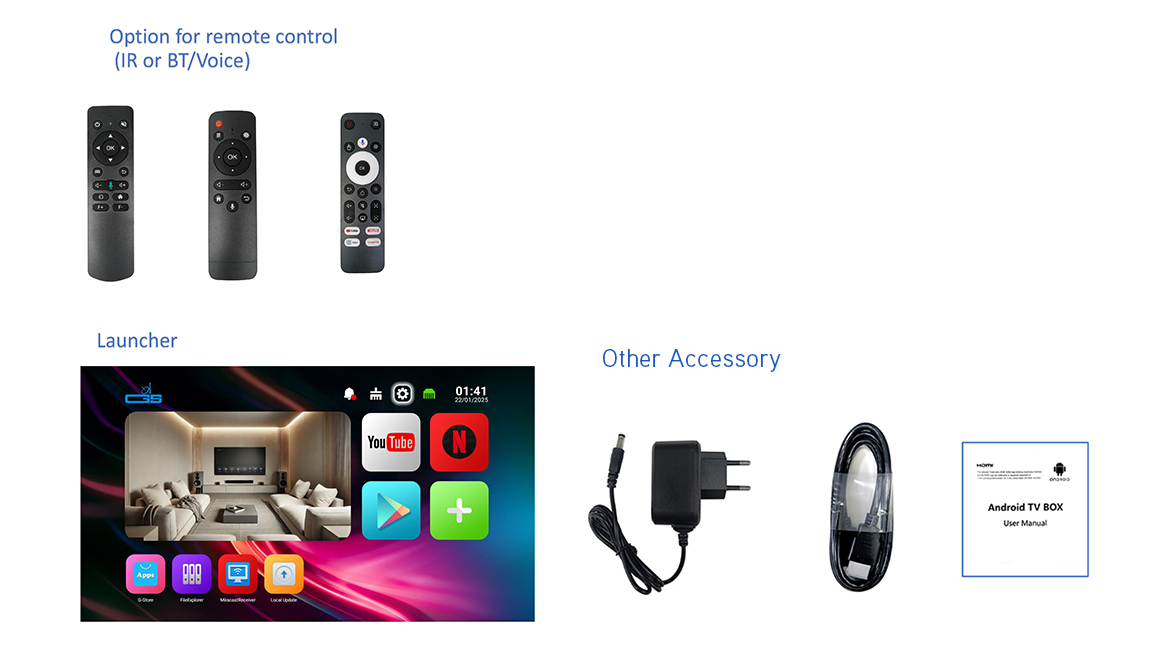

Ø Accessories: Remote Control (IR or BT/Voice), Power Adaptor, HDMI Cable and User Manual.

Product details


 Software Feature - Android 10.0 OS
- Video
Ø Supports video decoding up to 4Kx2K@60fps
Ø Supports multi-formats:
• AV1 MP-10@L5.1 up to 4Kx2K@60fps
• VP9 Profile-2 up to 4Kx2K@60fps
• H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps
• H.264 AVC HP@L5.1 up to 4Kx2K@30fps
• MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
• WMV/VC-1 SP/MP/AP up to 1080P@60fps
• MPEG-2 MP/HL up to 1080P@60fps (IS0-13818)
• MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
• Multiple language and multiple format sub-title video support
• MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
• Supports JPEG thumbnail,scaling, rotation and transition effects

Software Feature
- Audio
Ø Supports MPЗ, AAC, WMA, RM, FLAC, Dolby Audio(optional), DTS(optional) and programmable with 7.1/5.1 down- mixing
Ø Built-in serial digital audio lEC958 input/output, SPDlF input/output and PCM input/output,SPDlF supports 192KHz 16/24/32bit stereo
Ø Supports TDMIN_A (1 lane), TDMOUT_A(1 lane), TDMOUT_B (4 lanes), TDMOUT_C (1 lane)SPDIF_IN (1 lane), SPDlF_OUT (1 lane). Each data lane supports 2 channels in l2S mode, or 2-32 channels in TDM mode
Ø Built-in stereo audio DAC
Ø Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM

- Image
Ø HD JPEG, BMP, GIF, PNG, TIF

- Appliactions
Ø Online : Browse all video websites,support Netflix,Youtube etc.
Ø Apps : Apps download freely form android market
Ø Medium: Local Media playback,Support HDD, U Disck

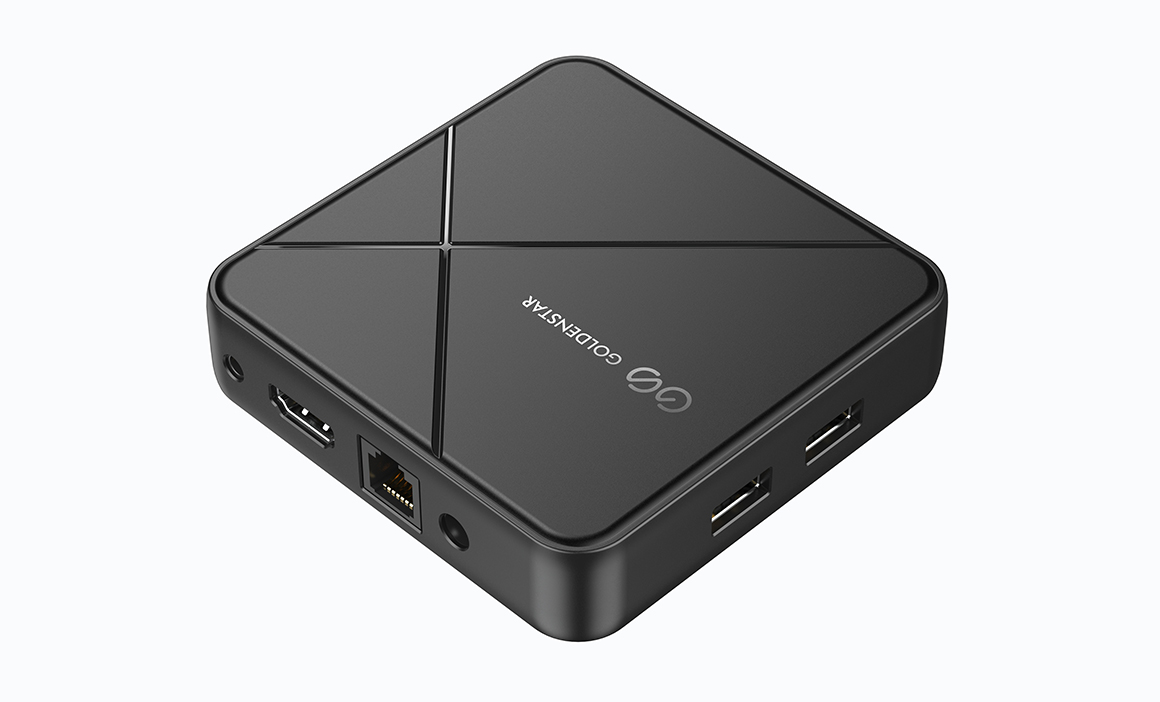

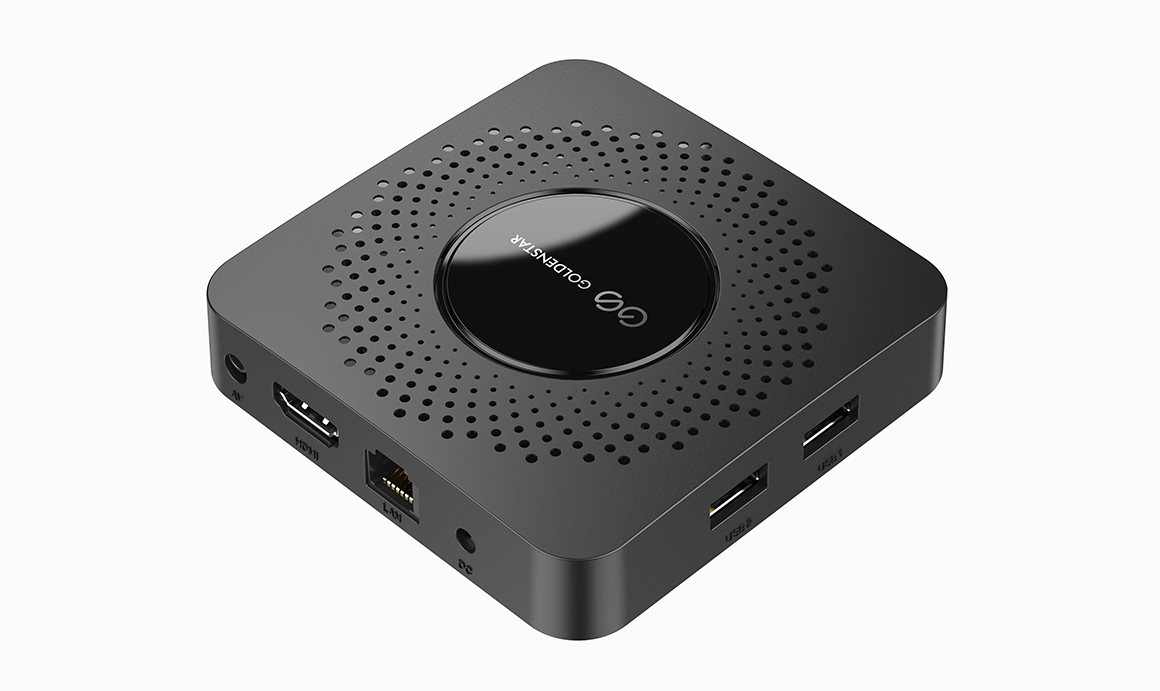

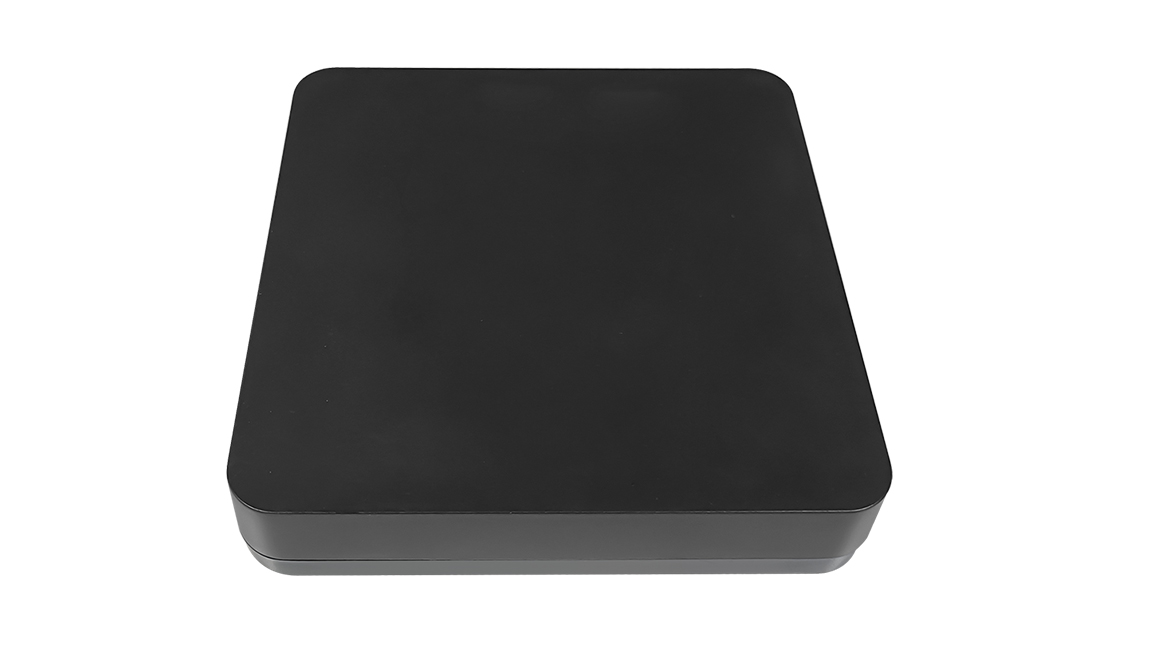

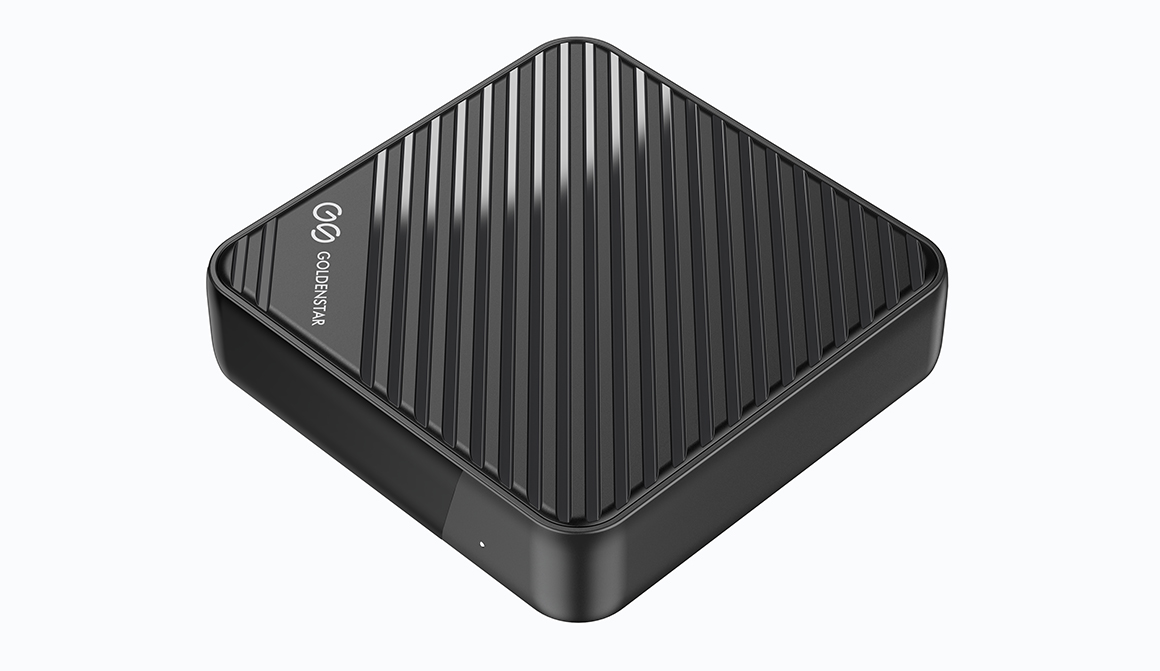

Option for housing case
